NUT/BOLT POOR WELD DETECTION SYSTEM Platen-navi NUT/BOLT POOR WELD DETECTION SYSTEM Platen-navi

Features

・Detects nut/ bolt welding defects instantly.
・Hardly breakable original sensor is installed.
・Palm-sized, attachable to any welding machine.
・Unique cooling and sputter removal structure enables stable weld quality.
Platen-navi Navi Nut system Số lượng: 0 cái


  •
  • NUT/BOLT POOR WELD DETECTION SYSTEM Platen-navi

  • Features

    ・Detects nut/ bolt welding defects instantly.
    ・Hardly breakable original sensor is installed.
    ・Palm-sized, attachable to any welding machine.
    ・Unique cooling and sputter removal structure enables stable weld quality.


Thương hiệu
Xuất xứ


New addition to navi series.



Option


Taper base

Flange base

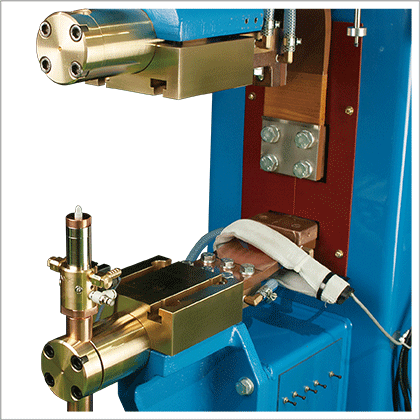

Installation example


Horn

Taper

Projection

Special Horn

C-gun


Examples of Incorrect Nut Setting

ナットのサイズ違い
Incorrect nut size
ナットがセットされていない
No nut
ナットの向きが逆
Inverted nut
ナットが縦置きになっている
Overturned nut
電極がゆるんでいる
Loosened electrode
ナットがガイドピンの横に置かれている
Misaligned nut
Slanted nut
ナットとガイドピンの芯がずれている
Center-misaligned nut
ナットが二つ重なっている
Overlapped nuts


ガイドピンがゆるんでいる
Loosened guide pin

ナットの足がつぶれている
Crushed nut feet
ワークがセットされていない
No workpiece
ワークの板厚が違う
Unsuitable workpiece thickness
ワークが二枚重なっている
Overlapped workpieces
ワークの芯がずれている
Misaligned workpiece

Examples of Incorrect Bolt Setting

The difference in shape of the bolt
The difference in diameter of the bolt

The difference in length of the neck lower



Attachments


1.AC adapter
2.Junction cable for manual operation
3.Controller mounting plate
4.Cable Tie
